SmartGen | Genset Cloud Monitoring FAQ

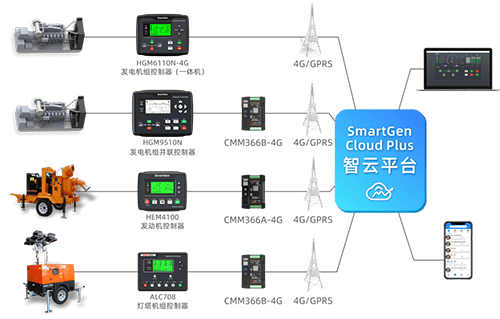

SmartGen cloud monitoring modem can be connected to SmartGen cloud server (SmartGen Cloud Plus) via GPRS, network, WiFi to realize genset remote monitoring.

Cloud Monitoring Solution



A few days ago we found that some customers could use cloud monitoring normally when the unit was commissioned, but it did not work properly after it was sent to the site.The following common causes and solutions are specially sorted out for your reference!

 ─The controller communication address is changed by the customer on site, resulting in inconsistency with the unit communication address set in the background, making it impossible to communicate. The performance of fault is cloud modem RS485 light is always on, GPS and GPRS lights are flashing, power light is always on. This is a more frequent situation, be careful not to change controller communication address at will.

 ─Field controller 485 wire is unplugged, making communication impossible.

 ─GPS cannot position—the phenomena is that positioning has been the previous address, other data are normal, but cloud modem GPS light is always on. At this time, you can check whether there is a problem with GPS antenna connection.

 ─IOT cards are reused. Under the current rule, the IOT card can only match one cloud modem or integrated controller. If IOT card is activated for use in the first device and then inserted into another device for use, it will cause card locking to fail to communicate. In this case, you can put the card into the original device and wait for it to be unlocked or report to the IOT card vendor to re-bind the card with the new device. Remember that one card can only be used on one device in order to avoid locking. Do not use one card for multiple purposes!

 ─IOT card is normal but cloud modem cannot communicate. At this point may be the card is not correctly inserted, you can try to reinstall the card. Pay attention to whether the card slot is in good condition and can be closely combined with the card.

 More questions continue to be collected and summarized. SmartGen, making control easier!
